Finally progress electric panel has been installed

      Yahoo!! The electric panel was installed and the 300 inverter is working. One always wonders when you do this kind of project and spend $1500 if everything will work when it's finally all hooked up ? So far so good.  I will report on additional progress as soon as possible.

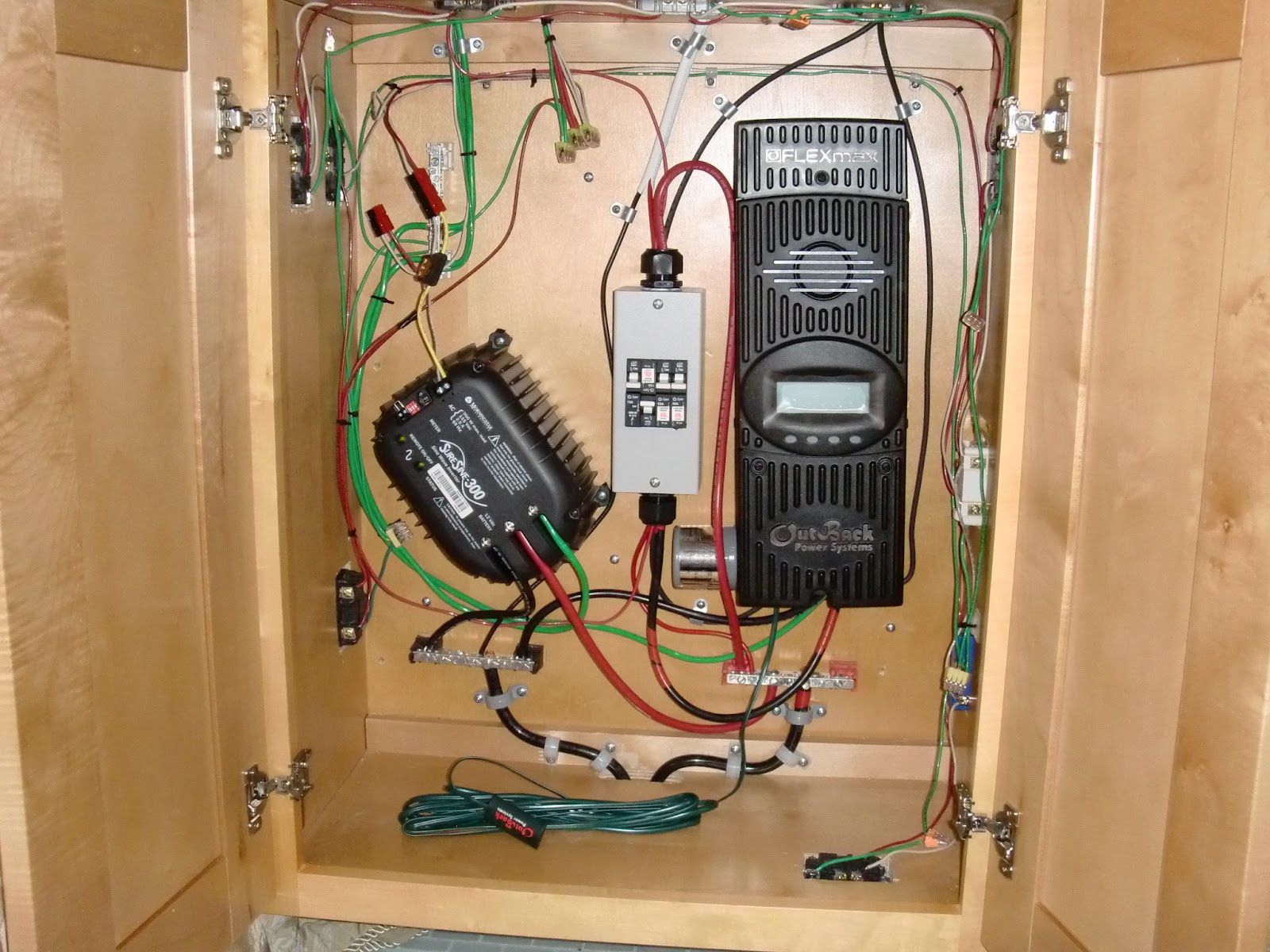

Here is the inside of the entire panel again.

Here you can see the two green lights on the 300 Watt sine inverter.

The battery connection, just to be on the safe side I only install a 75 amp fuse.
The 1/0 wire I have used will hold up to a 150 amp fuse.

Here you can see we are getting 114 Volts of pure sine a/c.

Here is the finished cabinet on the wall.
I still need to connect the solar panels on the roof /
connect the charge controller and then to test that system.
Next will come the wallpaper I hope soon ?
I am feeling really bad with the flu or something, so I will keep it short today.
